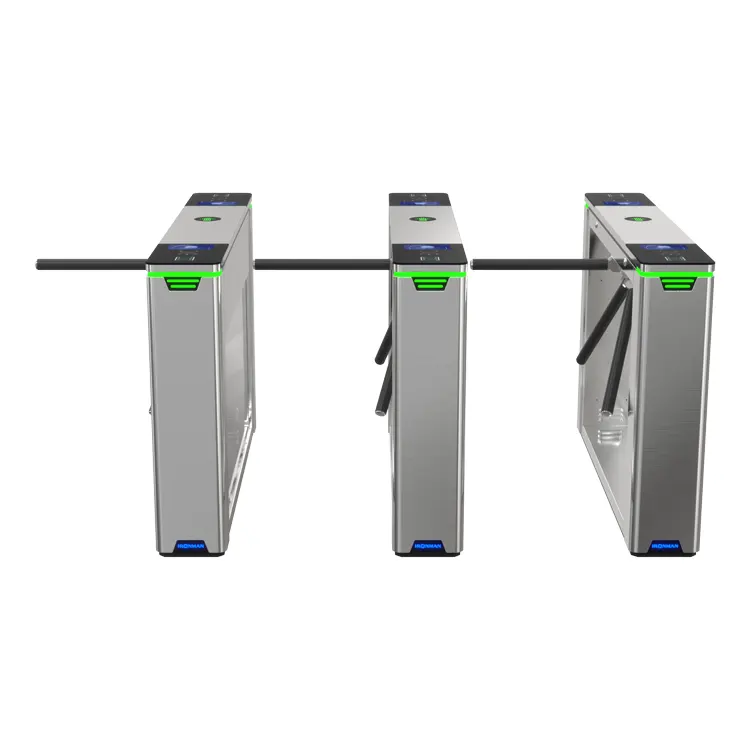

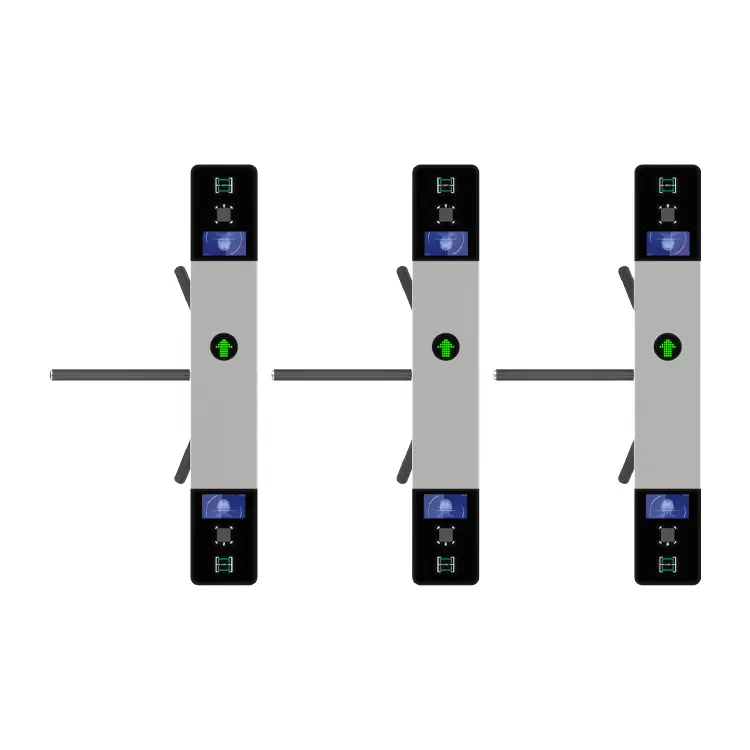

Porte de contrôle d’accès sur trépied
IM.TL.03
This Tripod Access Control Turnstile Gate is a high-performance access management solution designed for efficient pedestrian flow control. Crafted with 1.5mm stainless steel, it boasts durability and corrosion resistance, ideal for both indoor and outdoor use. Equipped with a fully automatic anti-collision tripod mechanism, it ensures smooth operation while preventing damage from improper use. The gate supports QR code recognition for quick, Accès sans contact, and offers customizable logo branding to align with your venue’s identity. It can also be integrated with a visitor management system—enabling seamless registration, authorization, and tracking of guests. This turnstile balances security, commodité, and durability, making it perfect for offices, Sites industriels, Stades, et installations publiques.
-
Largeur de passage: 550~600 MM
-
Matériel: 1.5mm 304 Stainless Steel
-
Dimensions externes (Personnalisable): 1500*240*1000MM
-
Durée de service: Over 8 million continuous opening and closing cycles
-
Tripod Arm Material: SUS304 Stainless Steel; Optional black or red arm covers available
Reconnaissance faciale
Affichage LED
8 Paires de détecteurs infrarouges
QR
Porte de contrôle d’accès sur trépied is a robust and economical pedestrian management solution designed for controlled access in commercial, institutional, and industrial environments. Its simple yet effective mechanical structure makes it a preferred choice for offices, Stades, Gymnases, école, and government buildings where user flow must be managed reliably and efficiently.
Built from 1.5mm thick 304 stainless steel, this turnstile features strong anti-corrosion properties and is suitable for both indoor and semi-outdoor applications. Avec customizable dimensions (1500×240×1000 mm) and a standard passage width of 550–600 mm, it offers flexible integration into different space layouts.

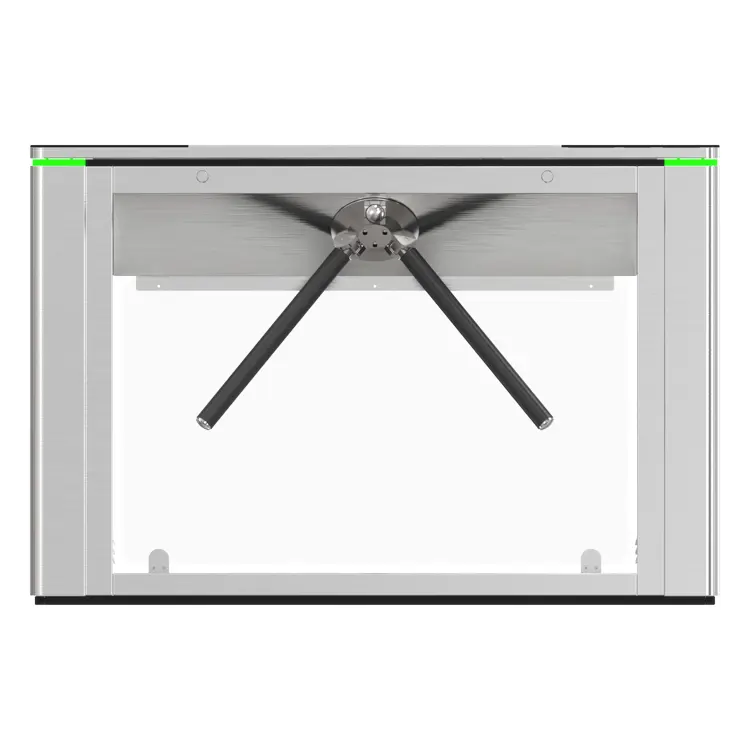

Le tripod arm is made from high-strength SUS304 stainless steel, and can optionally be equipped with black or red anti-slip protective covers for added visibility and safety. Designed to support over 8 million open/close cycles, this model is engineered for longevity under high-frequency usage.
Avantages
- Rugged mechanical structure ideal for high-footfall areas
- Supports multiple authentication methods for flexible access management
- Easy to maintain and service with minimal components
- Affordable and widely compatible with access control systems
- Optional arm covers enhance visibility and user safety
- Suitable for single-lane or multi-lane installations
- Détails du produit
- Spécifications
- Installation et utilisation
- Adaptabilité
- FAQ
Détails du produit
Caractéristiques fonctionnelles
- Bi-directional passage with locking mechanism
- Smooth operation with manual or semi-automatic reset options
- Compatible with RFID, barcode, empreinte digitale, or face recognition systems
- Emergency fail-drop arm function for power failure or evacuation mode
- LED indicators and audio prompts for passage guidance
- Fast throughput: supports up to 35–40 people per minute
- Integrates with third-party systems via RS485, Wiegand, ou contact sec
Spécifications
Spécifications techniques principales
| Paramètre | Spécification |
| Largeur de passage | 550–600 mm |
| Matériel | 1.5 mm 304 Stainless Steel |
| Taille | 1500 × 240 × 1000 mm (personnalisable) |
| Durée de service | Over 8 million opening/closing cycles |
| Tripod Arm Material | SUS304 Stainless Steel; black/red covers optional |
| Type moteur | Manual, semi-automatic, or full-automatic (optionnel) |
| Direction | Bi-directional |
| Speed | ≤ 40 personnes/min |
| Communication | RS485 / Wiegand / Dry contact |
Installation et utilisation
Étapes d’installation
- Mark and drill anchor points as per mounting template.
- Fix the cabinet securely to the ground with expansion bolts.
- Connect power, control wires, and access reader terminals.
- Configure motor mode (manual/semi-auto) and verify sensor logic.
- Test locking, unlocking, and emergency drop-arm functions.
Use Notes
- The arm locks by default and rotates after valid access is verified.
- The turnstile resets after a user passes or times out.
- In an emergency, the arm drops automatically for safe evacuation.
- Periodic checks are recommended for mechanical tension and housing integrity.
Adaptabilité
Adaptabilité du marché mondial
- Tension: 100-240Entrée large portée V (Compatibilité mondiale de la grille)
- Soutien linguistique: 24/7 Service en Anglais
- Certification: CE, FCC, ISO
FAQ
FAQ
Q1: Is this turnstile waterproof?
UN: It is suitable for indoor or semi-covered outdoor areas. For full outdoor use, a waterproof enclosure is recommended.
Q2: Can it be integrated with QR or facial recognition?
UN: Oui. It supports integration with various access control terminals via RS485, Wiegand, or relay signals.
Q3: What happens during a power outage?
UN: The tripod arm will automatically drop (fail-safe mode) to allow emergency evacuation.
Q4: Can the arm cover colors be customized?
UN: Oui, black and red anti-slip covers are optional and can be provided as per your design needs.
Q5: Is it suitable for two-way access?
UN: Oui. The unit supports bi-directional control and can be configured for entry or exit lanes.
