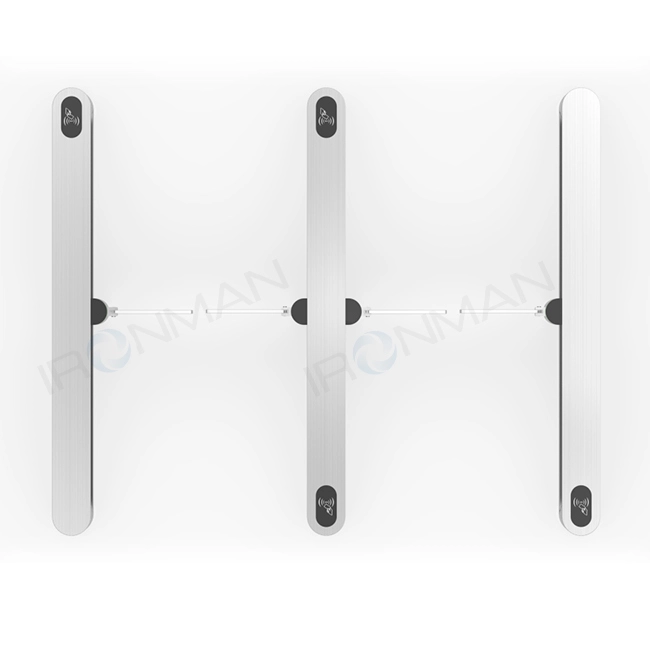

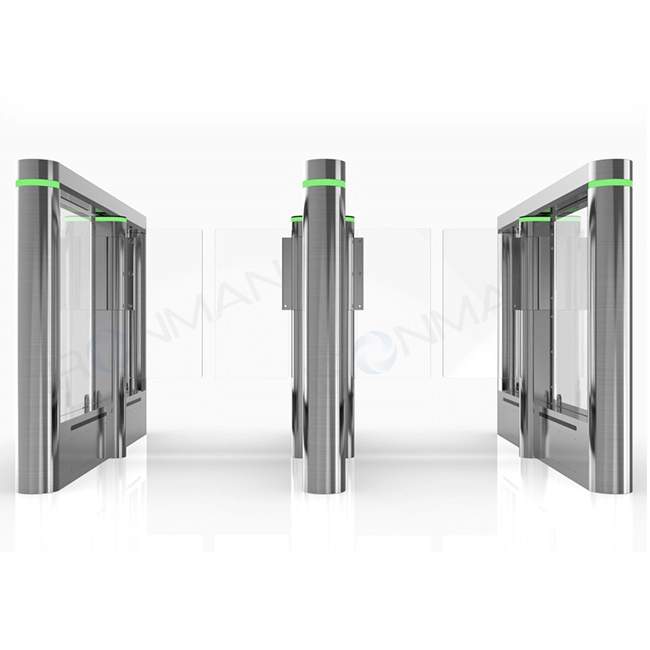

Portail de vitesse en acier inoxydable
IM.ST605
Stainless steel speed gate IM.ST605 is a high performance, presque, safe, and smart stainless steel speed engineered pedestrian flow. A minimalistic design, its firm construction, and high level of security i.e. anti-tailgating and emergency override, makes it easy to install it at the high traffic location not only in the corporate lobbies and industrial locations but also in the government facilities.
-
Matériel：Inox 304
-
Infrared Detection Sensor：8 Paires
-
Largeur de canal ：≤1000mm
-
Vitesse de circulation： ≤ 45 personnes/min
-
Dimensions (personnalisation acceptée)：longueur 1500* Largeur 127* Hauteur 980 mm
Reconnaissance faciale
Affichage LED
8 Paires de détecteurs infrarouges
QR
The stainless steel speed gates are well designed to occupy the location where there is a need of high throughput and at the same time, have high degree of security. The size of the gate is small and minimalist in nature. The high-speed wing mechanism is directly sensitive to the accepted credentials such as the RFID cards, QR code or any other biometric entry. Meanwhile, it has got in-car anti-tailgating sensors that regulate the passage in real time to prevent illegal trailing. It possesses a noise-free motor drive that has a high-quality brushless motor that makes it ideal to be utilized in areas where noise is a sensitive factor.
Caractéristiques
- Less than 1s latency of wing opening.
- SUS304 anticorrosion stainless steel body.
- Tailgating infra-red sensor detection system.
- Directed access LED displays and voice announcements.
- RFID, QR code and biometric compatible.
- Auto-open of power failure or fire alarm.
- Neutral brushless low noise motor drive.
- Supports one directional access control or two directional access control.
En outre, the system facilitates the unidirectional flow and the bidirectional flow. With modular internal parts, the workload on the maintenance is minimized and the downtime is minimized. The speed gate is stainless steel which offers quality, fashionable and intelligent access control either on its own or when used along with a larger access control system.
- Détails du produit
- Spécifications
- Techniques et caractéristiques
- Adaptabilité
- Application
Détails du produit
Matériaux et structures de qualité industrielle
Our stainless steel speed gate is a high-performance, slim-profile access control solution designed for fast, sûr, and efficient pedestrian management. Built with heavy-duty 304 or 316 inox, it ensures long-lasting durability, corrosion resistance, and a sleek modern appearance, making it ideal for both indoor and outdoor installations.
Engineered for high-traffic environments, this speed gate offers rapid operation, low maintenance, and seamless integration with various access control systems (Lecteurs de cartes, Scanners biométriques, Reconnaissance faciale, etc.). Its simple yet robust design makes it a reliable choice for corporate offices, Centres de transport, Stades, Usines, and secure facilities.
Spécifications
Spécifications techniques principales
| Taille | longueur 1500* Largeur 127* Hauteur 980 mm |
| Matériel | 1.5mm thickness SUS 304 inox |
| Système de détection | 8-Capteurs infrarouges ponctuels (extensible à 12 Paires) |
| Système de propulsion | Servomoteur (30 M+ cycles maintenance-free) |
| Vitesse de dépassement | ≤ 45 personnes/min |
| Largeur de passage | Standard 550-900mm (extensible jusqu’à 1300 mm sans barrière) |
| Tension d’alimentation | AC110~220V±10 %，50/60Hz |
| Intégration | Supports RFID/face recognition/QR scanning /RS485/relay interfaces |
Techniques et caractéristiques
Caractéristiques techniques et de sécurité
Authentication and Access Control
Multi-Mode Verification:
RFID-cards, QR-codes, biométrie (fingerprint/face recognition), mobile NFC, as well as PIN pads are accepted.
Integration Capability:
This can be connected with third party security systems (Par exemple, turnstile controllers, ticketing systems, visitor management software).
Direction Control:
The direction control may be unidirectional, bidirectional and free flow passage.
Fast & Smooth Gate Movement
High-Speed Swing Mechanism:
It requires 0.5-1 seconds to transport an arm in case of high pedestrian throughput.
Motorized Operation:
The operation uses a 24 V DC brushless motor that offers the benefit of providing efficiency in energy usage and giving it a quiet operation.
Anti-Rebound Function:
This prevents forced entry to the lock by locking the arm when it is hampered when trying to close.
Anti Tailgating/Safety Features
Infrared Sensors (IR):
IR sensors to curb tailgating/piggybacking passage are 8-12 in number.
Détection d’obstruction:
This will automatically stop or reverse the arm in case an object/person is detected in the course of the path.
Anti-Pinch Protection:
These are force sensitive mechanisms or edges made of soft rubber with the purpose of preventing injury.
Emergency Override: Free Push Mode:
When the power is off or necessary (connection to fire alarm).
Fire Alarm Interface:
Auto unlock mode.
LED & Audio Indicators
Visual Signals:
RED LED: Denied access / locked gate. LED verte: Licensed / unlocked gate. Selectable 7-digit showing of countdowns or error codes.
Audible Notifications:
The audible notifications are the use of a buzzer or vocal warning during invalid access or system failure.
Durability and Green Flexibility
Stainless Steel Housing:
It is not vulnerable to corrosion, impact and vandalism.
IP65 Waterproof Rating:
Protects internal components against dust and rain (IP67 optional to be immersible).
High Temperature Tolerance:
Will operate in -20 o C to 70 o C -4 à 158 F.
Adaptabilité
Adaptabilité du marché mondial
- Tension: 100-240Entrée large portée V (Compatibilité mondiale de la grille)
- Soutien linguistique: 24/7 Service en Anglais
- Certification：CE,FCC,ISO
Application
Scénarios d’application
- Corporate Offices & Business Centers
- Stades, Arenas & Event Venues
- Usines & Industrial Facilities
- Government Buildings & High-Security Areas
- Universities & Research Centers
- Shopping Malls & Smart Buildings
