Tourniquet à colonne fine
IM.ST609

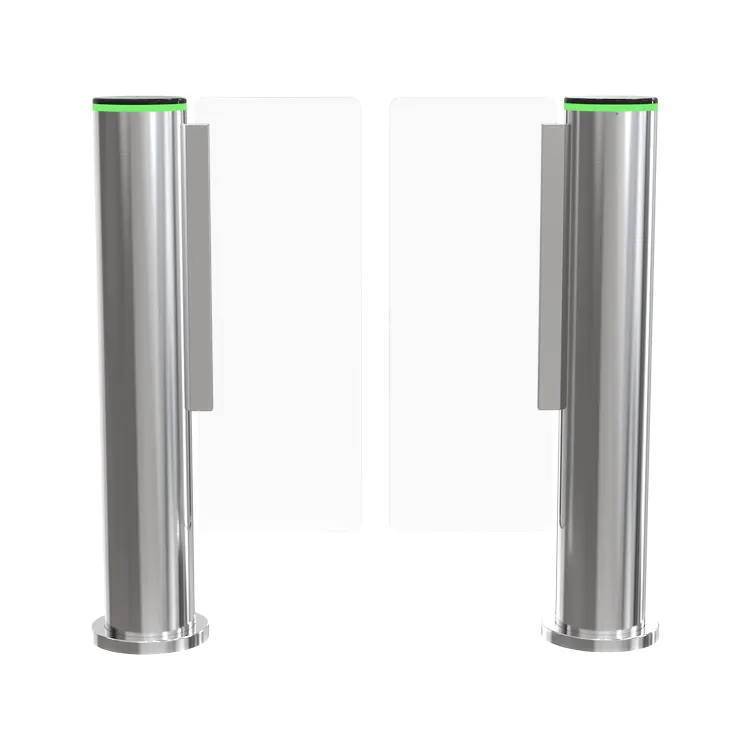

Our Slim Column Turnstile is a premium access control solution designed for modern entrances in offices, corporate campuses, Stades, and smart buildings—blending sleek aesthetics with high-performance engineering to redefine efficient, secure pedestrian flow management. Crafted with a SUS304 stainless steel cylindrical body for durability and a minimalist look, it features a transparent swing arm (maintaining visual openness) and a top-mounted traffic indicator light (green for "clear" status) for intuitive feedback, while its high-precision servo motor enables high-speed passage (0.5 seconds per person), precise swing arm positioning, Opération silencieuse (≤45dB), and exceptional reliability (12 million cycles MTBF and service life of 12 million operations); additionally, it supports multi-factor authentication (Reconnaissance faciale, card swiping, QR code scanning, etc.) and seamless integration with smart security systems, balancing safety, vitesse, and durability for versatile access control needs.
-
Taille (Personnalisation acceptée): ⌀168*1000mm
-
Matériel: 2.0 mm thickness 304 inox
-
Moteur d’entraînement: Brushless Drive Motor/Servo motor (Optional)
-
Largeur de canal: ≤1300 mm
-
Vitesse de circulation: ≤ 45 personnes/min
Reconnaissance faciale
Affichage LED
8 Paires de détecteurs infrarouges
QR
Tourniquet à colonne fine is a modern, cylindrical-style access control gate designed for high-efficiency pedestrian flow in compact architectural spaces. With a minimalist vertical design and powerful internal drive system, it offers both aesthetic elegance and industrial-grade performance for commercial buildings, transport terminals, école, and government facilities.

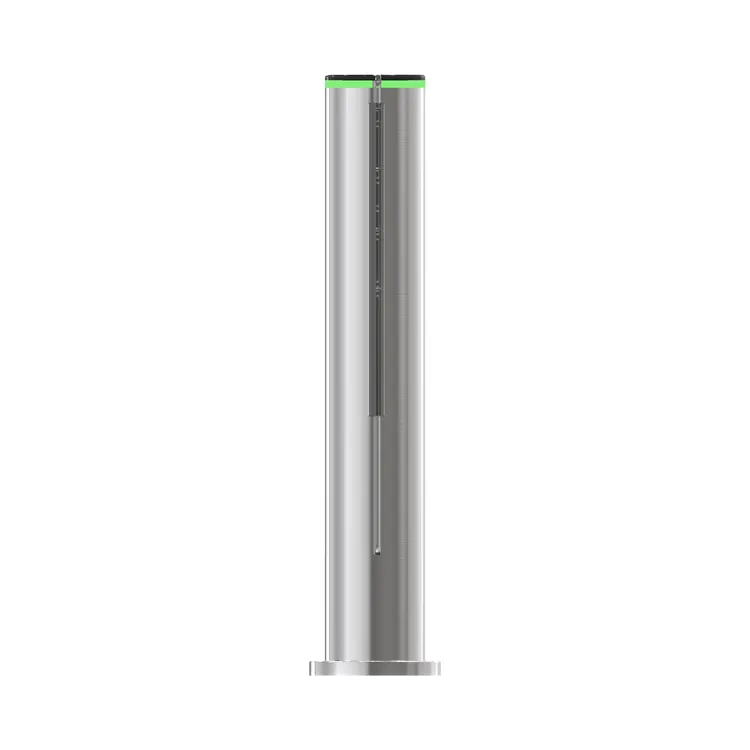

Crafted from 2.0 mm d’épaisseur 304 inox, the turnstile’s column structure (⌀168 × 1000 mm) ensures exceptional resistance to corrosion and wear while maintaining a sleek, unobtrusive presence. This makes it an excellent fit for indoor or semi-outdoor areas where space and appearance are both critical considerations.
The system supports bi-directional flow, accommodates wide channels up to 1300 mm, and offers smooth motion via either a brushless DC motor or a servo motor depending on application needs. It handles up to 45 Personnes par minute, making it suitable for medium to high-traffic locations.
Avantages
- Ultra-slim column design saves space and blends with modern architecture
- Optional brushless or servo motor for fast, stable gate operation
- Supports extra-wide lanes (jusqu’à 1300 mm) for wheelchair or baggage access
- Durable 2.0 mm SUS 304 stainless steel housing for long-lasting performance
- Quiet, low-vibration drive system ideal for indoor public settings
- Minimal installation footprint for compact lobbies and passageways
- Détails du produit
- Spécifications
- Installation et utilisation
- Adaptabilité
- FAQ
Détails du produit
Caractéristiques fonctionnelles
- Bi-directional access control with rapid opening and reset
- Compatible avec la RFID, Code QR, empreinte digitale, or facial recognition terminals
- Smooth passage for up to 45 utilisateurs par minute
- Fail-safe mechanism: opens automatically in power loss or emergency scenarios
- LED direction indicators and optional voice prompts for user guidance
- Integration-ready with RS485, Wiegand, or TCP/IP protocols
- Automatic reset after unauthorized entry or timeout
- Floor-mount design with concealed cable routing
Spécifications
Spécifications techniques principales
| Paramètre | Spécification |
| Taille | ⌀168 × 1000 mm (customization available) |
| Matériel | 2.0 mm thickness 304 inox |
| Moteur d’entraînement | Brushless DC motor or servo motor (optionnel) |
| Largeur de passage | ≤1300 mm |
| Vitesse de circulation | ≤45 people/min |
| Direction | Bidirectionnel |
| Authentication Modes | RFID, Code QR, empreinte digitale, Reconnaissance faciale (via reader) |
| Communication | RS485 / TCP/IP / Wiegand |
| Emergency Response | Auto-open in power failure/fire alarm |
| Montage | Floor-mounted, indoor or covered semi-outdoor use |
Installation et utilisation
Étapes d’installation
- Determine lane width and mark mounting positions on the floor.
- Secure the base of the column using expansion bolts.
- Connect internal wiring to power, communication, and access control terminals.
- Configure system direction, opening speed, and reader types via control panel.
- Test motor operation, sensor response, and emergency unlocking.
Instructions d’utilisation
- Users present a valid credential (card, Code QR, etc.) to trigger the gate.
- LED indicators show permitted direction; the arm automatically resets after passage.
- In case of power outage or fire signal, the gate enters fail-open mode automatically.
- Clean stainless steel housing and check motor/sensor monthly for consistent operation.
Adaptabilité
Adaptabilité du marché mondial
- Tension: 100-240Entrée large portée V (Compatibilité mondiale de la grille)
- Soutien linguistique: 24/7 Service en Anglais
- Certification: CE, FCC, ISO
FAQ
FAQ
Q1: What is the main advantage of a slim column design?
UN: It saves floor space and is ideal for narrow lobbies or minimalist architectural environments.
Q2: Can the turnstile support wide access for trolleys or wheelchairs?
UN: Oui. With a maximum passage width of 1300 mm, it supports accessibility requirements and baggage-friendly lanes.
Q3: What are the differences between brushless and servo motors?
UN: Brushless motors offer energy efficiency and long lifespan, while servo motors provide higher precision and faster response.
Q4: Can it integrate with facial recognition or QR scanners?
UN: Oui. It supports various authentication methods and integrates with third-party systems via RS485, Wiegand, ou TCP/IP.
Q5: Est-ce adapté à un usage extérieur ??
UN: It is recommended for indoor or semi-outdoor covered areas. Pour un usage complet en plein air, a weatherproof model is advised.
