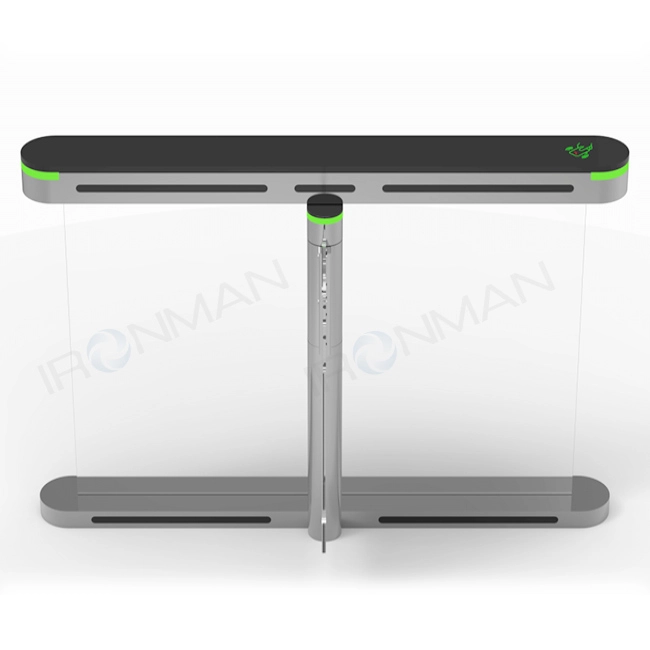

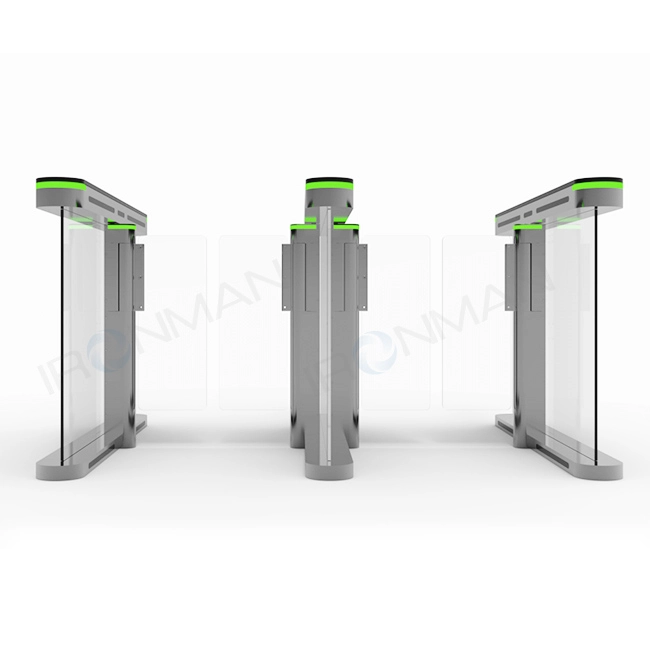

Porte de vitesse optique
IM.ST603
IM.ST603 redefines access control with illuminated elegance and intelligent design. Built from SUS304 stainless steel and tempered glass, it blends advanced sensor-based security (anti-tailgating, anti-pinch, emergency open) with seamless accessibility features—ideal for corporate offices, museums, and high-traffic smart spaces.
-
Dimension ：longueur 1500* Largeur 150* height 1000mm
-
Matériel : 1.5SUS en mm d’épaisseur 304 stainless steel +tempered glass
-
Système de détection ：8-Capteurs infrarouges ponctuels (extensible à 12 Paires)
-
Système de propulsion : Moteur à courant continu sans balais / Servo-moteur optionnel (30 M+ cycles maintenance-free)
-
Largeur de passage : 550-1300mm standard
Reconnaissance faciale
Affichage LED
8 Paires de détecteurs infrarouges
QR
The speed gates provide a sophisticated and classy pedestrian control access at commercial and public places. They are defined by the use of infrared optical sensors that use motorized wings that have enabled them to travel fast and make contact without colliding physically and causing harm. The speed gate is an optical speed gate that detects movement precisely and thus reduces the errors in detection and the number of users passing through the gate is at maximum.
The stainless steel or aluminum alloy and frosted acrylic or tempered glass wings make up the current building. These materials are not only effective in ensuring that these environments are durable, but also complete architectural environments. De plus,, LED also offers edge lighting that enhances visibility of the users as well as offers real time status information such as red when it is a denial and green when it is an access granted.
Their greatest asset is that they can be used to unite beauty and functionality. The users will also have the advantage of being able to ride without any sound or even touch and the administrators will be able to know when people are anti-tailgating and provide real time warnings. In case of emergency the gates are opened automatically and quick evacuation is allowed.
Caractéristiques
- No-contact movement by means of infrared optical scan.
- Intuitive Light plumbing LED, did not require trough lighting.
- Wings made up of stainless steel and acrylic.
- The high-end interior can be fitted with silent motor.
- RFID friendly, Code QR, face and fingerprint ID.
- Fast throughput tailgating detection.
- Evacuation emergency- auto-open.
- Changeable to one-way and two-way traffic.
En outre, system logic allows flexible one-way or bidirectional operation, depending on foot traffic patterns. Maintenance is minimal, with brushless motors and simplified control modules ensuring long-lasting performance.
- Détails du produit
- Spécifications
- Techniques et caractéristiques
- Adaptabilité
- Application
Détails du produit
Matériaux et structures de qualité industrielle
The optical speed gate delivers visually enhanced and sensor-intelligent pedestrian access, supporting secure, silent, and high-speed throughput in modern buildings.
- Key elements used and why they work for your product:Elegant/Stylish/Sleek/Beautiful: Highlights the visual appeal of the glass and LED design.
- Illuminated/Glowing/LED Brilliance/Glow: Directly references the unique selling point of the LED effects enhanced by the glass.
- Secure/Passage/Access: Core function of the speed gate.
- Modern/Redefining: Positions it as contemporary and advanced.
- Seamless/Effortless Flow: Suggests smooth operation.
- Inclusive/Accessible/For All: Crucial benefit of wheelchair access.
- Gateway/Entry/Passage: Describes its purpose.
- Designed for Modern Spaces/Offices, Museums & More: Clearly states the ideal indoor environments.
Spécifications
Spécifications techniques principales
| Taille | longueur 1500* Largeur 150* height 1000mm |
| Matériel | 1.5SUS en mm d’épaisseur 304 stainless steel +tempered glass |
| Système de détection | 8-Capteurs infrarouges ponctuels (extensible à 12 Paires) |
| Système de propulsion | Servomoteur (30 M+ cycles maintenance-free) |
| Vitesse de dépassement | ≤ 45 personnes/min |
| Largeur de passage | 550-1300mm standard |
| Tension d’alimentation | AC110~220V±10 %，50/60Hz |
| Intégration | Prend en charge les interfaces RFID/reconnaissance faciale/scan QR/RS485/relais |
Techniques et caractéristiques
Caractéristiques techniques et de sécurité
Anti-tailgating (Piggybacking Prevention):
Uses high-precision infrared sensors (often multi-beam or 3D volumetric) to detect if more than one person attempts to pass with a single valid credential.
Triggers barrier closure or alarm to prevent unauthorized entry.
Anti-Passback:
Prevents re-using the same credential for multiple entries/exits without an intervening valid event, stopping credential sharing.
Contrôle de la direction:
Ensures barriers only open in the authorized direction (entry vs. exit), enforcing one-way flow.
Anti-Pinch Safety System:
Infrared beams or pressure sensors detect obstructions (gens, objects) in the barrier path.
Immediately stops or reverses barrier movement to prevent injury or damage.
Emergency Open (Free Egress):
Barriers unlock instantly during fire alarms or power failure for safe evacuation (compliant with safety regulations).
Often includes a manual release button.
Accessibility & Usability
Wheelchair Access Mode:
Wider clearance (typically ≥ 90cm-120cm) and extended open time.
Activated via dedicated credential, button, or automatic sensor detection.
Adjustable Speed & Dwell Time:
Configurable barrier movement speed and open-hold duration to suit different traffic flows.
Multi-Credential Support:
Compatible with RFID cards, Identifiants mobiles, biométrie, Codes QR, and facial recognition.
Adaptabilité
Adaptabilité du marché mondial
- Tension: 100-240Entrée large portée V (Compatibilité mondiale de la grille)
- Soutien linguistique: 24/7 Service en Anglais
- Certification：CE,FCC,ISO
Application
Scénarios d’application
- Bureaux & Headquarters
- Museums & Art Galleries
- Fitness Centers & Gyms
- Bâtiments gouvernementaux
- liUniversity Campuses
