Tourniquet octogonal incliné à trépied

IM.S102

Secure high-tripod turnstile with smart intrusion alarms, fire safety connection and hardy stainless-steel structure - ideal in secured and normally busy locations.

  • icon_mark

    Vitesse de dépassement: ≤ 30 personnes/min

  • icon_mark

    Largeur de passage:550 mm standard

  • icon_mark

    Matériel: LEUR 304 Inox (1.2mm Épaisseur)

  • icon_mark

    Taille:longueur 1200* Largeur 280* Hauteur 980 mm

  • icon_mark

    Tension d’alimentation:AC110~220V±10 %,50Hz

  • CE certificate
  • Certificat ISO
  • Certificat ROHS
  • Certificat FCC
  • Certificat CCC
TÉLÉCHARGER

Reconnaissance faciale

Affichage LED

8 Paires de détecteurs infrarouges

QR

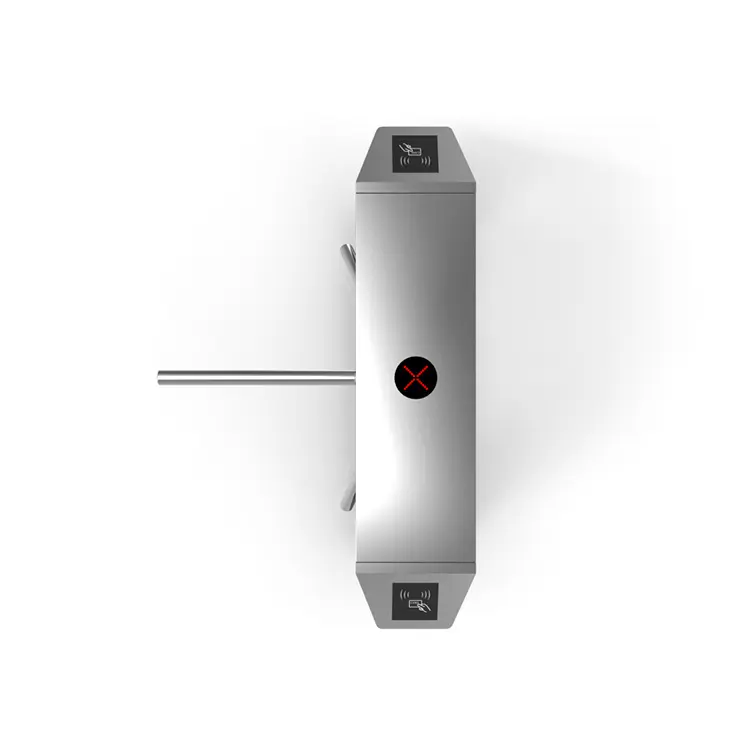

The inclined octagonal turnstile provides structural and modern features with its very pronounced angular body. Donc, it improves flexibility in installations and also adds the visual deterrent effect on sensitive access points. It is constructed of heavy-duty stainless steel and can be used in high traffic places without experiencing any problem with its smooth operations.

The turnstile gives an accurate pedestrian traffic since it can only permit a single individual. Intuitive sensors and logic control allow use of anti-tailgating functions. En outre, it has an emergency drop-arm operation triggered by fire alarm or power outage, so that it may be passed at any time.

En outre, the inclined octagonal tripod turnstile comes in a small size and adjustable interface which makes it compatible with different systems of ID. These are the RFID cards, Scanners de codes QR, fingerprint modules and facial recognition terminals. LED lights and voice encouragement make the user experience smoother and with less hesitation as well as enhanced throughput.

Caractéristiques

  • Strengthened octagonal body withstands deformation and an external impact.
  • Smart anti-tailgating detection with alarm systems.
  • Mechanism by which doors drop during a fire alarm or power failure.
  • Painless integration with RFID, QR, biometrics and facial terminals.
  • Voice-guided and smooth and user-friendly operation.
  • Directional control of traffic of one way or two way.
  • Stainless steel enclosure that may be used indoors and outdoors covered.
  • Mechanical movement with a low level of noise to be used in quiet places.

The sloping tripod octagonal turnstile is used to support one-way or two-way rotation. System managers have the option of changing the access mode to suit the need of the site and the security protocols are enforced with the help of the built-in access records.

  • Détails du produit
  • Spécifications
  • Techniques et caractéristiques
  • Adaptabilité
  • Application
Détails du produit

Matériaux et structures de qualité industrielle

The inclined octagonal tripod turnstile offers secure and stable pedestrian access control with a reinforced triangular frame, ensuring reliable entry restriction. It supports anti-tailgating detection, integrates with fire alarm systems, and suits areas like school gates, Halls de bureaux, et installations publiques.

  • Matériel: LEUR 304 Inox (1.2mm Épaisseur)
  • Résistance à la corrosion: A réussi l’ISO 9227 Test de brouillard salin (2,000 Heures sans rouille)
  • Plage de température: -30°C à +70°C (Compatibilité intérieur/extérieur)
  • Classification de protection: Résistance à l’eau et à la poussière (Fonctionnement stable sous fortes pluies ou poussières)
  • Concevoir:Pousser de force le bras de la porte sera considéré comme une intrusion illégale. Le système déclenchera automatiquement une alarme et verrouillera le bras de la porte (le rendant immobile).
Spécifications

Spécifications techniques principales

Taille longueur 1200* Largeur 280* Hauteur 980 mm
Système de propulsion Semi-automatique
Vitesse de dépassement ≤ 30 personnes/min
Largeur de passage 550 mm standard
Tension d’alimentation AC110~220V±10 %,50Hz
Intégration Prend en charge les interfaces RFID/reconnaissance faciale/scan QR/RS485/relais
Techniques et caractéristiques

Caractéristiques techniques et de sécurité

Système de contrôle d’accès intelligent

Caractéristiques de sécurité:

Fonction automatique du bras de décharge:

Quand le courant est coupé, Le bras barrière qui bloque normalement le passage tombera automatiquement, facilitant l’évacuation des foules et respectant les exigences de sécurité incendie.

Fonction anti-collision:

Lorsque le bras de porte est en état verrouillé, il ne peut pas être poussé par une force externe et peut résister aux collisions dans la zone de sécurité.

Porte battante pour piétons extérieurs
Contrôle d’accès à la porte tournante par capteur de haute précision
Tourniquets d’authentification multi-méthodes
Adaptabilité

Adaptabilité du marché mondial

  • Tension:100-240Entrée large portée V (Compatibilité mondiale de la grille)
  • Soutien linguistique: 24/7 Service en Anglais
  • Certification:CE,FCC
Application

Scénarios d’application

  • Sécurité d’entreprise : Gare / Zone pittoresque
  • Espaces commerciaux: Stades / Chantier de construction
  • Villes intelligentes: communauté
