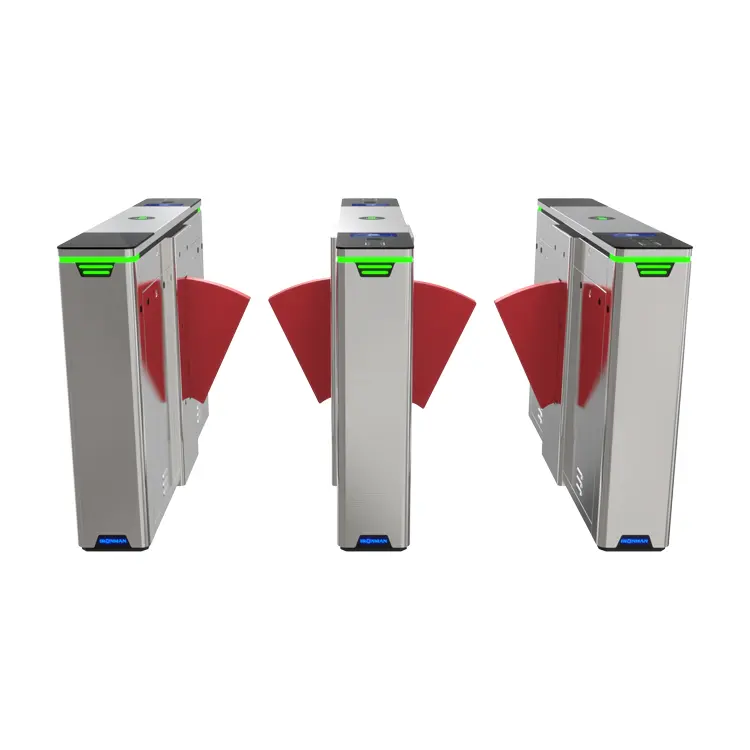

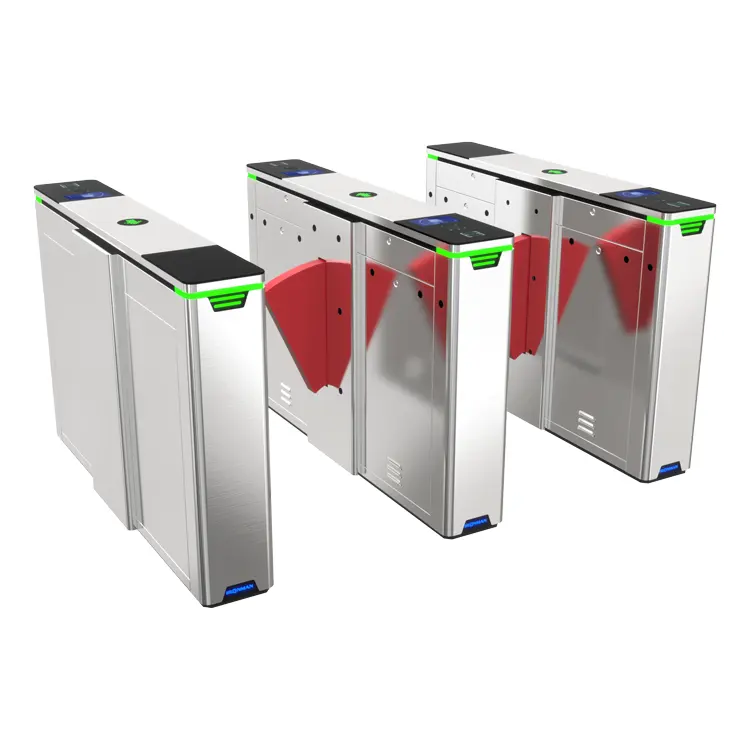

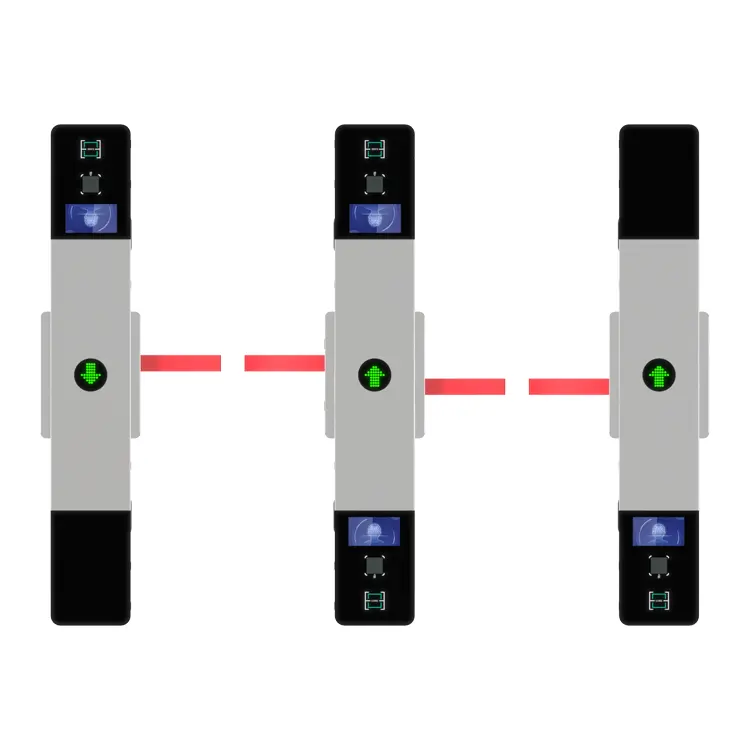

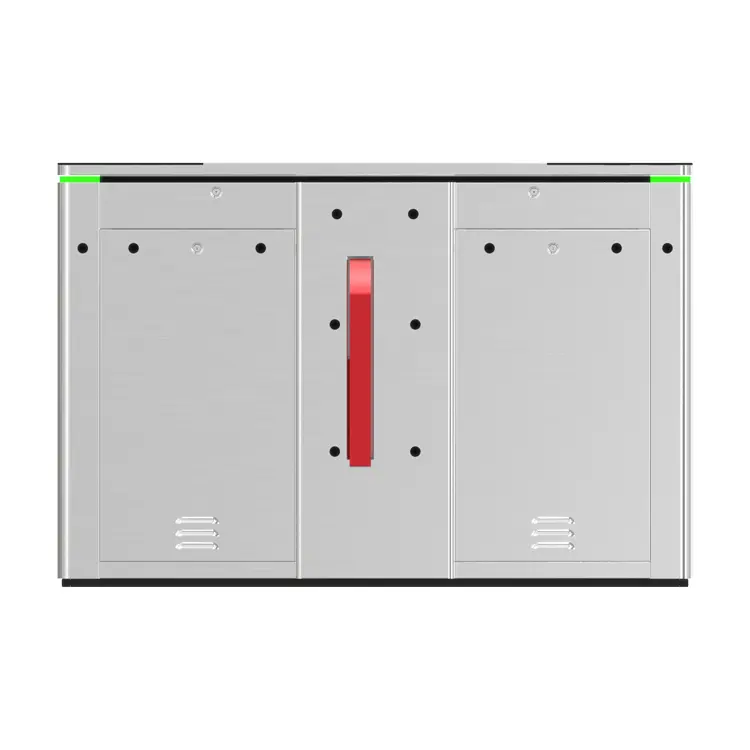

Access Control Flap Barrier
IM.XY.03
The Access Control Flap Barrier is an intelligent pedestrian management device designed for secure, efficace, and controlled entry management in various facilities. It supports multiple authentication methods including RFID, Code QR, empreinte digitale, and face recognition. With its fast opening speed, Opération silencieuse, et la technologie anti-tailgating, the flap barrier is ideal for office buildings, corporate lobbies, Stations de métro, Aéroports, and other high-traffic environments.The flap barrier also supports customizable branding, allowing clients to add customized logos, colors, and LED lighting effects to match their corporate identity or architectural style. De plus, the system is designed for wide compatibility, integrating seamlessly with mainstream access control platforms, biometric terminals, time attendance systems, Systèmes de billetterie, and third-party software through RS485, TCP/IP, and dry contact interfaces.
-
Capteurs infrarouges: 12 Pairs
-
Largeur de passage: Available in 550mm, 600mm, 900mm
-
Overall Dimensions: 1500*300*1000 mm (Custom Sizes Available)
-
Durée de service: Sur 20 millions de cycles d’ouverture et de fermeture continus
-
Matériel: 2.0mm SUS304 Stainless Steel + 2.0mm Corrosion-Resistant Electrolytic Plate
Reconnaissance faciale
Affichage LED
12 Paires de détecteurs infrarouges
QR
Access Control Flap Barrier is a high-performance pedestrian access system built for controlled and secure entry in public buildings, Centres de transport en commun, Bureaux, and other high-traffic environments. Engineered with industrial-grade materials and smart access logic, this unit ensures fast, accurate, and safe passage for authorized individuals.
With a service life of over 20 millions de cycles, this flap barrier is designed for long-term use in demanding settings. The housing is constructed from 2.0 mm SUS304 stainless steel combined with 2.0 mm corrosion-resistant electrolytic plates, offering both structural strength and extended resistance against wear, moisture, and environmental factors.
The barrier integrates 12 paires de capteurs infrarouges, providing highly responsive anti-tailgating, anti-reverse, and anti-pinch detection. These sensors work in real time to monitor user movement, ensuring the flap only operates when a valid credential is presented.
Avantages
- 12 pairs of IR sensors for precise intrusion, reverse, and safety detection
- High-grade materials: 2.0 mm thick SUS304 stainless steel and electrolytic plate
- 20 million tested opening/closing cycles for extended product lifespan
- Flap opening speed of 0.2–0.6 seconds ensures smooth, efficient access flow
- Prend en charge la RFID, biométrique, and QR code authentication via RS485/Wiegand/TCP-IP
- Passage widths of 550mm, 600mm, or 900mm available for standard or wheelchair access
- Compact footprint with 1500×300×1000 mm dimensions (custom sizes optional)
- Emergency mode enables auto-flap retraction on power failure or fire alarm
- LED indicators and audio prompts guide entry and exit behavior
The flap panels are typically made of acrylic or polycarbonate, delivering both clarity and durability. Users are guided via LED directional arrows, and optional voice prompts can be added for enhanced user experience.
Pendant le fonctionnement normal, the flap barrier remains closed until it receives a valid signal from a connected access control system. In the event of an emergency or power outage, the system will automatically retract the flaps to allow free passage.
With robust construction, intelligent detection, and long service life, the Access Control Flap Barrier provides a scalable, reliable solution for modern pedestrian control infrastructure.
- Détails du produit
- Spécifications
- Installation et utilisation
- Adaptabilité
- FAQ
Détails du produit
Caractéristiques fonctionnelles
-
Compatible avec la RFID, Code QR, empreinte digitale, et systèmes de reconnaissance faciale
-
Équipé 12 pairs of infrared sensors for accurate anti-tailgating and anti-pinch detection
-
Supports bi-directional access control with fast flap opening in 0.2–0.6 seconds
-
Automatically opens flaps in case of power failure or emergency for safe evacuation
-
Real-time alarm for unauthorized access attempts, Entrée inversée, or sensor blockage
-
LED direction indicators and audio prompts guide smooth pedestrian flow
-
Customizable passage widths of 550mm, 600mm, and 900mm for standard or wheelchair access
-
Modular internal structure for easy maintenance and component replacement
-
Durable 2.0 mm SUS304 stainless steel housing resists corrosion and physical damage
-
Integrates easily with third-party access control software via RS485, TCP/IP, or Wiegand
Spécifications
Spécifications techniques principales
| Paramètre | Spécification |
| Matériaux de logement | 2.0 mm SUS304 stainless steel + 2.0 mm corrosion-resistant plate |
| Durée de service | ≥ 20 millions de cycles d’ouverture et de fermeture continus |
| Vitesse d’ouverture | 0.2 – 0.6 Secondes |
| Traffic Throughput | Up to 40–50 persons per minute |
| Modes d’authentification | Carte RFID, Code QR, empreinte digitale, Reconnaissance faciale (optionnel) |
| Communication Protocols | RS485, Wiegand, TCP/IP |
| Passage Width Options | 550 mm / 600 mm / 900 mm |
| Alimentation | AC 100–240V, 50/60Hz |
| Tension de fonctionnement | DC 24V |
| Taille | 1500 × 300 × 1000 mm (personnalisable) |
| Mode d’urgence | Auto-flap open on power failure or fire alarm |
| Température de fonctionnement | -20°C à +60°C |
Installation et utilisation
Installation et utilisation
Pre-installation: Ensure the floor is level and that embedded conduits for power and control lines are ready. Confirm passage layout (single/dual channel), power input availability, and network access points.
-
Fixing the Units: Position the barrier units accurately and fix them to the ground using anchor bolts. Align the passage width based on selected configuration (550mm, 600mm, or 900mm).
-
Câblage: Branche alimentation, ground, and communication terminals. Follow the wiring diagram to connect the flap barrier with access controllers, readers (RFID/QR/Biometric), and emergency devices.
-
Powering On: Apply AC power (100–240V), the system will initialize. Use the control board or configuration software to set up device ID, motor direction, sensor calibration, and logic settings.
-
System Testing: Verify motor operation, flap response speed, IR sensor alignment, and integration with the access control system. Test all safety features including anti-pinch and fail-safe retraction.
-
Operation: During use, valid credentials open the flaps; the system automatically resets afterward. In emergencies, the flaps retract automatically for safe evacuation.
Adaptabilité
Adaptabilité du marché mondial
- Tension: 100-240Entrée large portée V (Compatibilité mondiale de la grille)
- Soutien linguistique: 24/7 Service en Anglais
- Certification: CE, FCC, ISO
FAQ
FAQ
Q1: Is the flap barrier suitable for outdoor installation?
UN: It is recommended for indoor or covered semi-outdoor use. Pour un usage complet en plein air, a waterproof version with higher IP rating is required.
Q2: Can the passage width be adjusted for wheelchair users?
UN: Oui, standard options include 900mm wide lanes which meet accessibility standards.
Q3: What is the typical lifespan of the motor mechanism?
UN: The unit is rated for more than 20 million opening/closing cycles under normal use.
Q4: Does the system support dual authentication (Par exemple, carte + QR)?
UN: Oui, it can be configured to require two-factor verification if your access controller supports it.
Q5: What happens in case of a power failure?
UN: The flaps automatically open in fail-safe mode, allowing free passage for evacuation or emergency access.
