Fabricant de grilles de tourniquets biométriques avec lecteur d’empreintes digitales

Get the most comprehensive biometric turnstile gates manufacturers featuring fingerprint scanners.

Selecting a fingerprint turnstile gates manufacturer with fingerprint scanner tech is more than just a fingerprint reader being fitted onto a standard gate.

The scanner has to identify the person entering, the access-control system has to verify the credentials, the turnstile has to let the person through and the entire system has to be logged. If any in the chain is poorly planned, the money entrance might be slow, unreliable, or ward complex to handle.

The guide is intended for use by factories, data centres, Labs, Bureaux, Écoles, Installations gouvernementales, Intégrateurs système, security consultants and procurement teams looking at implementing pedestrian access thru fingerprint controlled systems.

Before joining the explanation, ask why one might want to use a fingerprint

When the card or pin does not give enough assurance as to who is entering, then fingerprint access is generally thought of.

Cards may be loaned to another person. PINs can be shared. The fingerprint can be used to validate the access, thus linking the access attempt more reliably to the enrolled fingerprint, and adds new issues when it comes to biometric accuracy, fingerprint enrolment, privacy and fallback access.

Prior to choosing a gate, it's important to first determine:

• In which area is it necessary to install biometric controls?
• Who will use it (Salariés, Contractors or Other interested parties)
• Do the groctables invest in wearing the fingerprints?Do the groctables Have to wear the fingerprints?
• What other credential(s) are required
• In what way visitors will come in to your home page.
• List some reasons a fingerprint might not be readable.List some reasons why it may be impossible to read a fingerprint.
• The types of places where biometric templates will be kept.
• All users are allowed to register or remove users.

Ironman’s Solutions biométriques de portail à tourniquet, features of pedestrian gates with the terminals and access-control systems that incorporate a fingerprint scanner. Au final, the configuration should be as per the security policy and user workflow of the site, or customised from a pre-packaged product.

Be familiar with the complete verification process

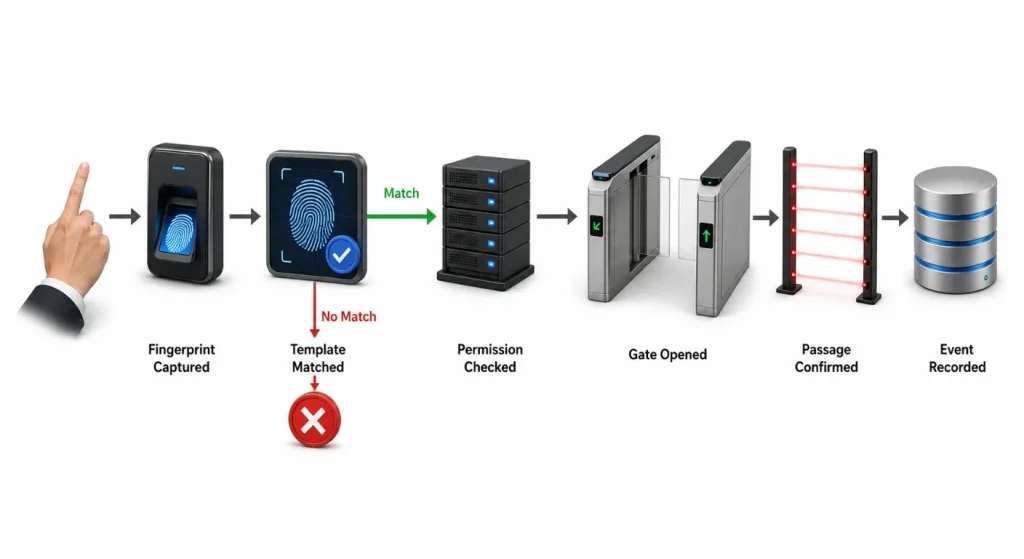

The standard security fingerprint door looks like this:

Fingerprint presented -> Sample captured -> Template matched -> Match permission checked -> Gate opened -> One person passes -> Recorded event.

The fingerprint reader does not take all the actions on its own. Biometric matching can be performed at the terminal, with a local controller, and/or a central server, depending on the design of the system.

The project team should determine if there is verification or identification in the system.

Méthode biométrique	Forces principales	Point à Vérifier
Empreinte digitale	Compact et familier	Condition des doigts
Reconnaissance faciale	Utilisation sans contact	Éclairage et angle de caméra
Reconnaissance de l’iris	Vérification d’identité forte	Positionnement utilisateur
Reconnaissance de la palme	Vérification sans contact	Compatibilité des terminaux
Accès multifactoriel	Sécurité accrue	Temps de passage

Verification matches a fingerprint print with an asserted identity, like an employee Id, or fingerprint card. ID: Looks for the fingerprint presented in the enrolled database. When there are lots of users enrolled, there might be a need for more processing and planned database to be done for identification.

This function should be pre-decided with the manufacturer and fingerprint terminal provider, the software company, and the local integrator.

Rainfall's gages are subjective

This is because going from a summary that is reasonably precise, to grammatical correctness is a fundamental problem: a summary can be a straight explanation, but grammatically correct statements are usually very detailed and can be longer.

NIST is able to differentiate between a "false match" (where the wrong user has gained access to the system) et un "false non-match" (when the correct user did not gain access because of the system). Affects the balance between these two errors based on the changing of the matching threshold.

Inquire about the supplier:

• Taux de faux matchs
• Taux de non-correspondance faux
• Seuil d’appariement
• Échec d’inscription
• Temps moyen de vérification
• Supported user capacity
• Test population
• Fingerprint quality requirements
• Error message: there is an error in the scanner and/or firmware.

All of the figures should be based on proposed terminal and operating conditions. A laboratory result is not necessarily a reflection of performance at the factory entrance, due to the possibility of dirty, sec, wet or worn fingers at the factory entrance.

Make sure that users of the system are made available

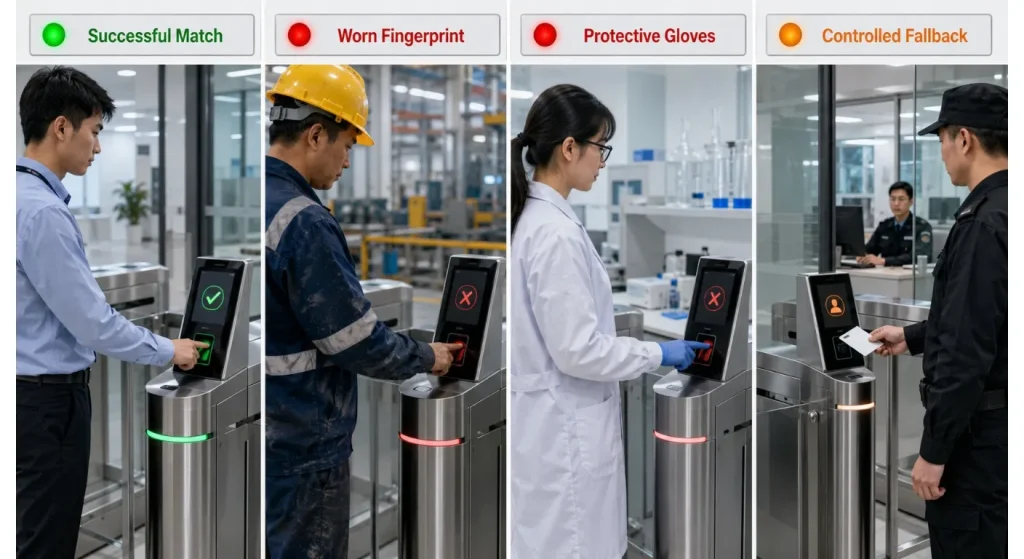

D’un autre côté, the use of a fingerprint system can impress everyone when it is demonstrated, since the same few persons enrol and test their fingerprints under optimal situations.

Real jobs aren't as predictable.

A firm of workers have worn fingertips. Laboratory personnel are allowed to wear gloves. Cleaners' hands may be wet. The hands of construction workers can contain dust or cuts and abrasions to the fingers. Others may simply possess prints which are challenging to the chosen scanner to catch.

Pre-test a pilot to determine how representative users will perform prior to approval of a project if it will be extensive. Use different fingers and enrol multiple fingers per person, as appropriate.

It does not want to be a test to determine if the scanner works just one time. It is to outline that normal workers are able to access it without establishing a line and needing to be constantly helped by security.

Offer a managed backup process

There should be no single point of compromise for an authorised individual to gain access by using a reader.

A user may have an injured finger or have a fingerprint damaged, or gloves to wear, or a temporary condition that makes scanning reliable the finger difficult. The network or fingerprint terminal (appareil) can also go bad.

There are a number of possible back-up methods:

• The security approval is in the form of an RFID card.
• Accréditation mobile
• Employee No and PIN
• The manual verification requires information from the card, which will be checked.
• Note: The player may either receive or release the ball in that location.
• A separate controlled visitor lane (non "controlled trailer access lane")
• Temporary access (time limit)

The backup process should be done without subterfuge to ensure security isn't compromised. All exceptions need to be approved by a designated approver, have a specific timeframe and have an event record.

Readers and controllers appropriate for the job can be checked in Ironman's Équipement de contrôle d’accès but the last in line of fall-backs are provided by the project's security policy.

Physical Gate around the Site is selected

Fingerprint access is available for a number of styles of turnstile.

Tripod turnstiles may be the best choice for instances when space and cost are essential, such as factories or staff entries. Speed gates and swing barriers could be appropriate for companies or data centres. Full height turnstiles offer increased physical control at industrial perimeter.

The type of turnstile gates and the security level into which they are incorporated must also align with the class of user volume and the planned width of the passage, the requirement for biometric recognition, and security level desired, beyond the biometric verification, and addition of a physical pedestrian barrier.

A fingerprint reader is used to verify someone's identity. It can't fix a narrow lane, inappropriate barrier for the location or a door users can bypass.

Personal Approval is a one-for-one Rule

Fingerprint verification does answer a question - does it answer whether this is an authorised user or not?

The turnstile will have to say…1 person passed?

The lane might require to detect:

• Talonnage
• 2 (when two persons enter together)
• Mouvement dans la mauvaise direction
• Entrée avant approbation
• The traffic user who comes to halt within the lane.
• Interruption while closing → Finalizing problems
• Temps mort pour le passage
• An approved user that has returned

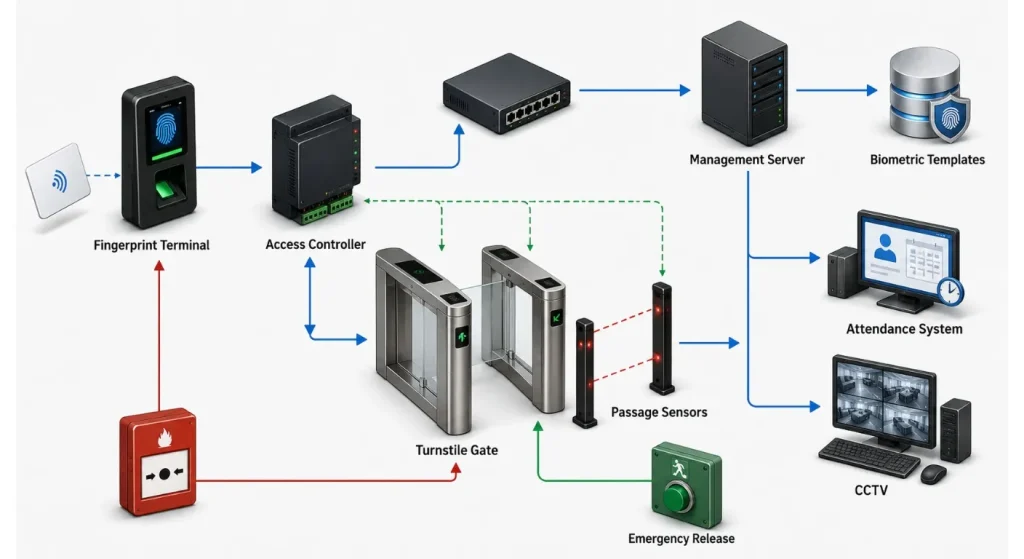

Inquire of the manufacturer about the arrangement of the sensors and the way in which they're operated. The buyer should be aware of gates opening and closing time, duration of the passage access, the cause of the gate closing and what causes the alarm to be triggered.

It could also connect to a security workstation, CCTV or anti-passback regulations in the event of a higher-security location.

Identify software and integration roles

Most typically there will be a number of suppliers that offer biometric projects. The gate can be from A, the fingerprint terminal from B and the management platform from C.

Prior to production, ensure that responsibility for:

• User enrolment
• Appariement biométrique
• Gestion des autorisations
• Signaux d’ouverture de la porte
• Records d’affluence
• Alarm events
• Configuration du réseau
• API integration
• Mises à jour logicielles
• Paramètres de cybersécurité
• Support technique

For any projects that need integrating third party, Ironman allows to check his turnstile gate SDK and API guide. It outlines integration options such as attendance, visitor and ticketing systems as well as building-management systems; Protocole, Champs de données, authentication and versions should be validated for this specific project.

The terminology “supports fingerprint access” is not detailed enough to be approved for an order. Each of the exact reader, Contrôleur, software and gate should be connected and tested with each other.

Consider Biometric Data to be Sensitive Project Information!

Fingerprint templates do not behave as would regular Card numbers.

These are the concerns that should be addressed by the organisation with regard to what is collected, où il est stocké, who is in charge of it, how it is protected and when it is deleted.

Demandez:

• Do raw fingerprint images stay and are they accessible?
• Is there a local/central repository of templates for which standardized layouts to use?
• Is the information, such as credit card numbers, crypté?
• Who is able to enroll / remove users?
• Do administrators' actions get noted?
• How does staff that leaves the company get removed from it?
• What does happen after replacement of a system?
• Does a privacy analysis need to be conducted?

European legal and privacy teams are advised to check any GDPR requirements that may apply to them and the European Data Protection Board biometric resources prior to fingerprinting employees for identification.

The gate manufacturer can provide clarity of hardware and integration limits, but for lawful processing of biometric data, it is entirely the end user's responsibility.

Test the Complete Configuration before shaming it

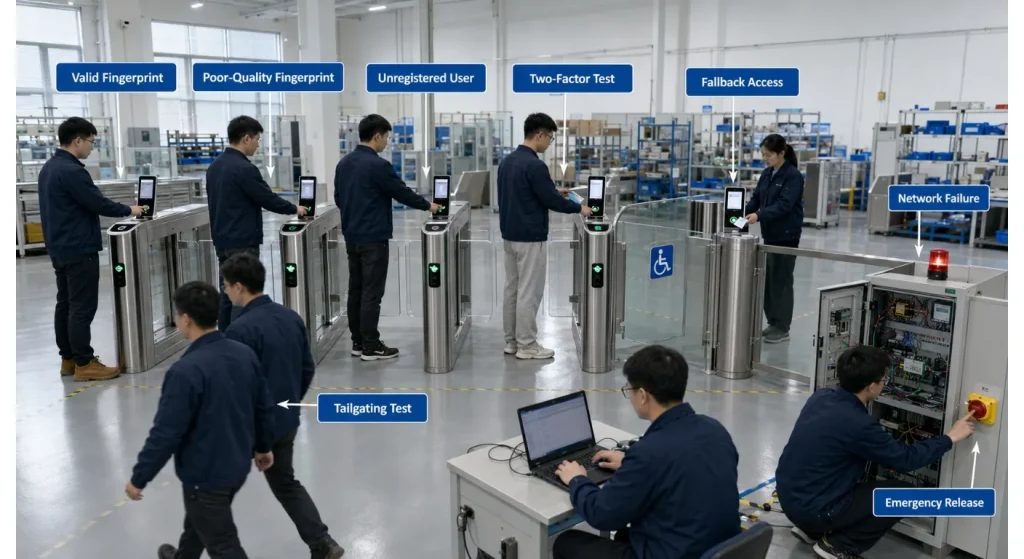

The turnstile, Contrôleur, Terminal d’empreintes digitales, software signal, and sensor settings (when possible) should be those approved by the factory for factory acceptance testing.

The test should be made up of:

• Successful enrolment
• Accès valide par empreintes digitales
• Rejet d’empreinte non enregistrée
• Tentatives répétées et infructueuses
• Manipulation des empreintes digitales de mauvaise qualité
• Fingerprint AND card verification.
• Backup credential use
• Talonnage
• Mouvement dans la mauvaise direction
• Interruption du réseau
• Récupération de l’alimentation
• Ouverture d’urgence
• Enregistrement de l’événement

Ask for them to provide any sort of test video; diagrams of the wiring; descriptions of the interface; version of the software used; Numéros de série; and any sort of inspection records.

Test Item	Résultat attendu
Biométrie valide	La porte s’ouvre une fois
Utilisateur non inscrit	L’accès reste refusé
Échantillon biométrique médiocre	Réessayer ou faire un repli clair
Accès multifactoriel	Les deux diplômes sont requis
Tentative de queue	L’alarme est activée
Défaillance réseau	Le plan de recours approuvé commence
Entrée d’urgence	Gate suit une logique approuvée
Enregistrement de l’événement	Les données correctes sont stockées

A demo done with another fingerprint terminal or controller does not guarantee whether or not the final configuration would work.

Sign up for the plan, set up and continue support as needed

Mechanical and digital assistance are needed for a fingerprint access.

Verify: who will subsequently install the gate, the programming of the terminal, enrolment of users, Seuils d’appariement, network connections, training of administrators and examination of faults.

Also inquire about replacement terminals, availability of controllers, controller configuration backup, remote diagnosis, compatibility with a controller's firmware, replacement methods and parts.

It should be easy to get in and out of, even after the original installer leaved.

Prepare a full RFQ document

Submit the project application form, Pays, intake sketch, Numéro de voie, pass number, maximum flow, Exigences de sécurité, Type de porte, width of entrance, requirements for fingerprint terminals, verification procedure, how many records do you have, multiple factor parameters, fallback method, Plateforme de contrôle d’accès, API requirements, privacy conditions, Environnement, emergency behaviour, scope or test, Responsabilité d’installation, Formation, spare parts and delivery schedule.

Do not place an inquiry for a turnstile's price on the Ironman contact form (in /contact), but rather the turnstile package.

When a detailed RFQ is created, it aids the manufacturer in understanding the risks involved in capacity, intégration, Vie privée, user-experience and maintenance before the product is made.

Conclusion

Any fingerprint scanner gates manufacturer with experience will provide a turnstile gate with a scanner as opposed to a gate with a scanner attached.

The whole entrance will have to be considered for the accuracy of the biometric data, performance of real user(s), single person entry, backup, Intégration logicielle, protection of data, emergency systems, testing and life cycle support.

The very best manufacturer will inquire how fingerprints will be enrolled, who will deal with failure, where fingerprints are stored and how the entire configuration will be proven before shipping.

FAQ

Fingerprint turnstiles or card turnstiles – which is more secure?

They are used to minimise sharing and transferring of cards. Gradually, security relies on the agreements, Capteurs de passage, protection of information and backup plans.

The question is what happens when a fingerprint can't be read?

Should be provided a controlled fallback which may be a card or approved by someone else. The exception should be approved and made note of.

Oui, you can use any turning software with a Fingerprint Turnstile.

Sure, if the logic for both terminal and controller is compatible as well as the logic of interface and permission. Check the approved hardware and software work together prior to sending.

Donc, what fingerprint access controller is the most suitable for the job?

The tripod gates are suitable for small employee entrances, and speed or swing gates are suitable for modern, interior facilities. Full height gates could be better for more well protected fences.

In what way would you first need to know to get a quotation?

Give the user numbers, trafic, type of gate, Flux de travail sur l’empreinte digitale, Interface logicielle, fallback method, L’environnement, scope of testing and the schedule of the project.
